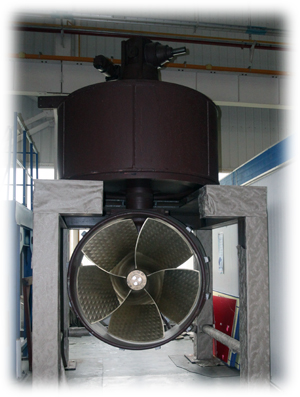

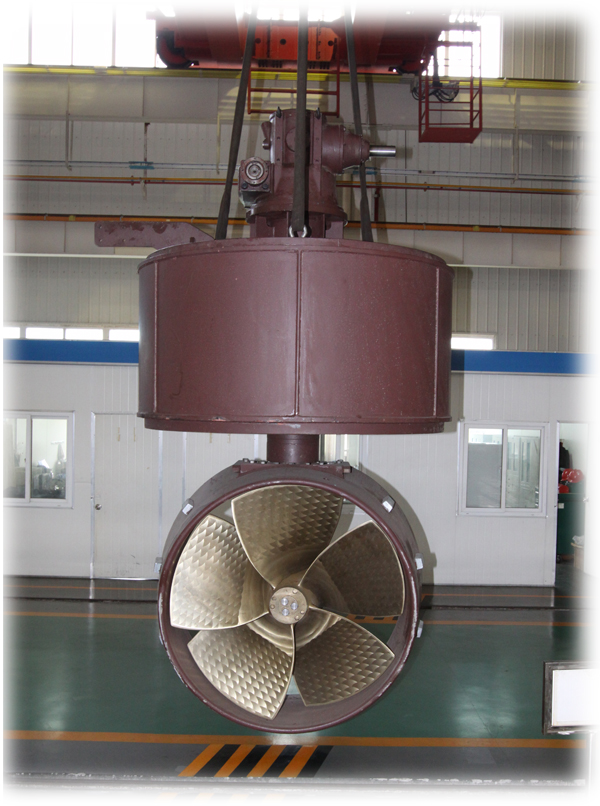

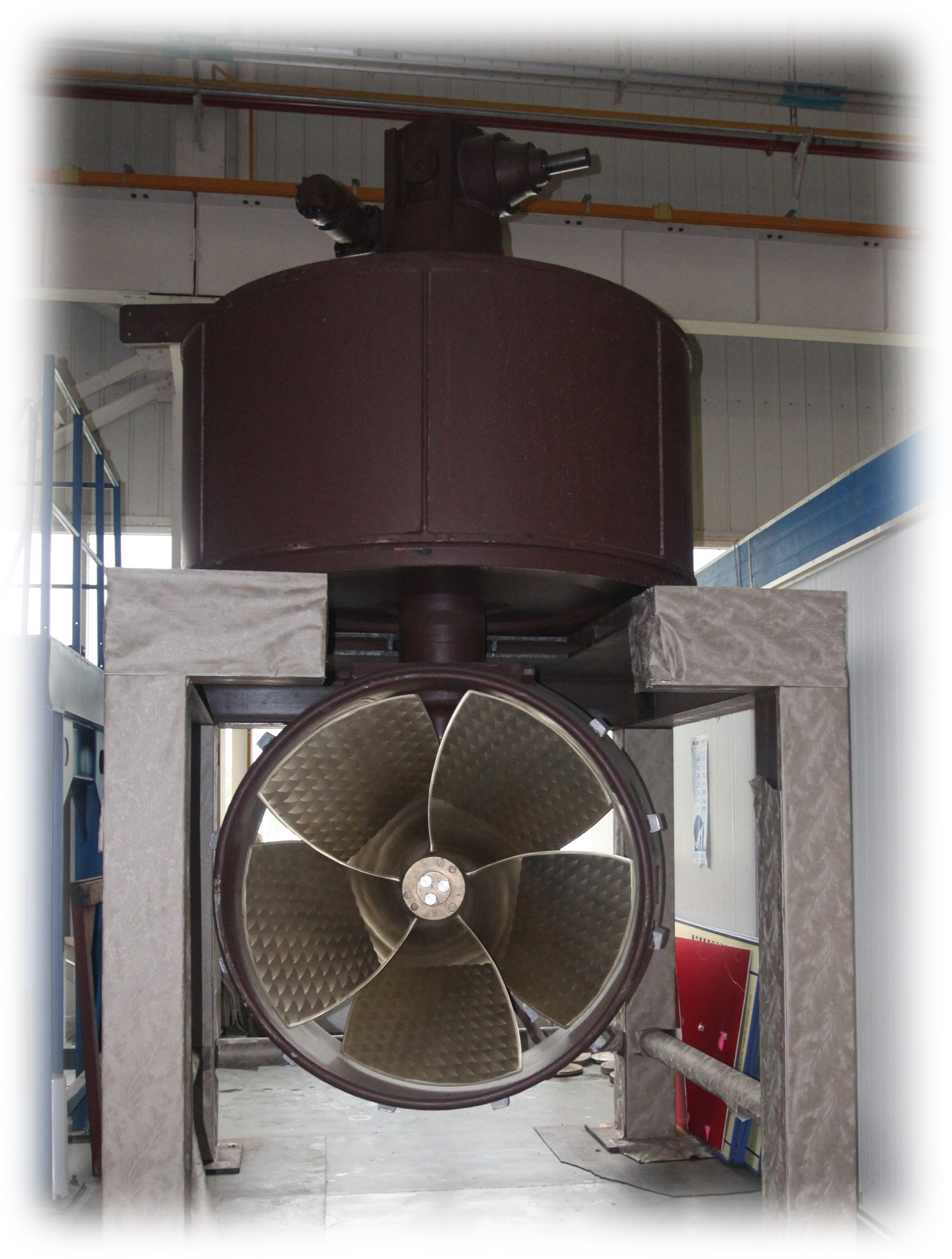

NGC marine propulsion and transmission equipment have been widely applied in the vessels all over the world. Our azimuth thrusters of FPP and CPP structures can be supplied according to customers’ requirements. The azimuth thrusters are able to transmit the power of the diesel engine, electric motor, and hydraulic motor to the optimal thrust through Z-drive & L-drive arrangement, it follows that the propulsion efficiency and maneuverability are highly improved.

Advantages:

1. The blades of low RPM and large diameter, together with the high efficient nozzles, ensure the propulsion efficiency, and reduce the noise and vibration effectively.

2. The modular design of thrusters, realize the interchangeability of the components by taking the simple and efficient designing philosophy from main propulsion, tunnel thruster and gearbox design.

3. The bevel gears are manufactured in house to Class ISO-4 standards, which are able to meet the requirements of various input speed and power; the high quality bearings of long life are selected and arranged to guarantee the gear contact accuracy.

4. The high quality alloy steel and bronze parts supplied by NGC subsidiary factory ensuring  the reliability at the very prime stage of the blades, hub, spiral bevel gear and the transmission shaft.

5. The azimuth thrusters are designed with reliable and smart structures and are easy to assemble in virtue of the collocation of built-in clutch, assembly type revolving seals, hydraulic pump and shaft lubrication pump.
